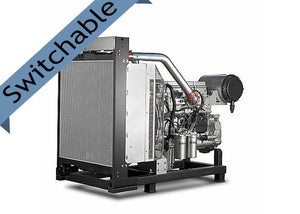

2206C-E13TAG2 Diesel Engine <br> 350 kVA @ 1500 RPM












2206C-E13TAG2 Diesel Engine
350 kVA @ 1500 RPM

ENQUIRE FOR PRICE

The 2200 range has been developed using the latest engineering techniques and builds on the strengths of the already very successful 2000 Series family. Developed from a proven heavy-duty industrial base, these products offer the superior performance and reliability required to meet today’s uncompromising demands within the power generation industry. The 2206C-E13TAG is a 6 cylinder, turbocharged air-to-air charge cooled diesel engine. Its premium features provide exceptional power to weight ratio resulting in exceptional fuel consumption. The overall performance and reliability characteristics make this the prime choice for today’s power generation industry.



  • Number of cylinders : 6 vertical in-line
  • Bore and stroke : 130 x 157 mm 5.1 x 6.1 in
  • Displacement : 12.5 litres 763 in3
  • Aspiration Turbocharged and air-to-air charge cooled
  • Cycle 4 stroke
  • Combustion system Direct injection
  • Compression ratio 16.3:1
  • Rotation Anti-clockwise, viewed on flywheel
  • Total lubricating capacity 40 litres
  • Cooling system Water-cooled
  • Total coolant capacity 51.4 litres





Economic power

  • Mechanically operated unit fuel injectors with electronic control combined with carefully matched turbocharging, give excellent fuel atomisation and combustion with optimum economy.
  • Low emissions result from electronic control of fuel injected

Reliable power

  • Developed and tested using the latest engineering techniques and finite element analysis for high reliability, low oil usage and low wear rates
  • High compression ratios ensure clean rapid starting in all conditions
  • Perkins global product support is designed to enhance the customer experience of owning a Perkins powered machine. We deliver this through the quality of our distribution network, extensive global coverage and a range of Perkins supported OEM partnership options. So whether you are an end-user or an equipment manufacturer our engine expertise is essential to your success

Compact, clean and efficient power

  • Exceptional power to weight ratio and compact size give optimum power density for ease of installation and more cost effective transportation
  • Designed to provide excellent service access for ease of maintenance

Product support

  • Perkins actively pursues product support excellence by ensuring our distribution network invest in their territory – strengthening relationships and providing more value to you, our customer
  • Through an experienced global network of distributors and dealers, fully trained engine experts deliver total service support around the clock, 365 days a year. They have a comprehensive suite of web based tools at their fingertips covering technical information, parts identification and ordering systems, all dedicated to maximising the productivity of your engine
  • Throughout the entire life of a Perkins engine, we provide access to genuine OE specification parts and service. We give 100% reassurance that you receive the very best in terms of quality for lowest possible cost .. wherever your Perkins powered machine is operating in the world



Air inlet

  • Mounted air filter

Fuel system

  • Mechanically actuated electronically controlled unit fuel injectors with full authority electronic control
  • Governing to ISO 8528-5 class G2 with isochronous capability
  • Replaceable ‘Ecoplus’ fuel filter elements with primary filter/water separator
  • Fuel cooler

Lubrication system

  • Wet sump with filler and dipstick
  • Full-flow replaceable ‘Ecoplus’ filter
  • Oil cooler integral with filter header

Cooling system

  • Gear-driven circulating pump
  • Mounted belt-driven pusher fan
  • Radiator incorporating air-to-air charge cooler, (supplied loose)
  • System designed for ambients up to 50ºC

Electrical equipment

  • 24 volt starter motor and 24 volt 70 amp alternator with DC output
  • ECM mounted on engine with wiring looms and sensors
  • 3 level engine protection system

Flywheel and housing

  • High inertia flywheel to SAE J620 size 14
  • SAE 1 flywheel housing

Mountings

  • Front engine mounting bracket

Literature

  • User’s Handbook and Parts Manual

Optional equipment

  • 110 volt/240 volt immersion heater
  • Additional speed sensor
  • Temperature and pressure sensors for gauges
  • Air filter rain hood
  • Twin starters/facility for second starter
  • Tool kit
